10 Metre (28 Mhz) Amateur Radio Base Station Antenna

Description

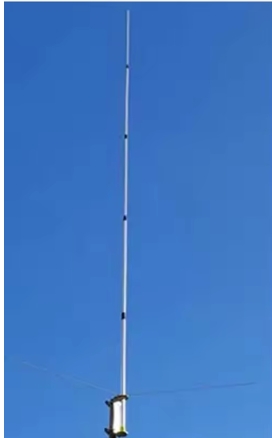

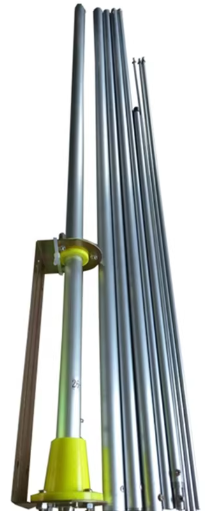

This is  our new 0.64 wavelength end fed vertical antenna for the 10 metre amateur radio band. Designed specifically for 28.0-29.7 Mhz, this antenna comprises 6 screw together aluminium rods, loading coil and 3 counterpoise sections, which form the complete antenna. The antenna is ground independant, rated at 100 watts and is terminated with an SO-239 connector.  We have pretuned this model to 28.875 Mhz to give the best possible SWR (<1.5:1) across the band. We include a 10 metre length of RG58 cable terminated with BNC plugs and 2 x BNC female to Pl-259 adaptors, to allow connection to most transceivers.

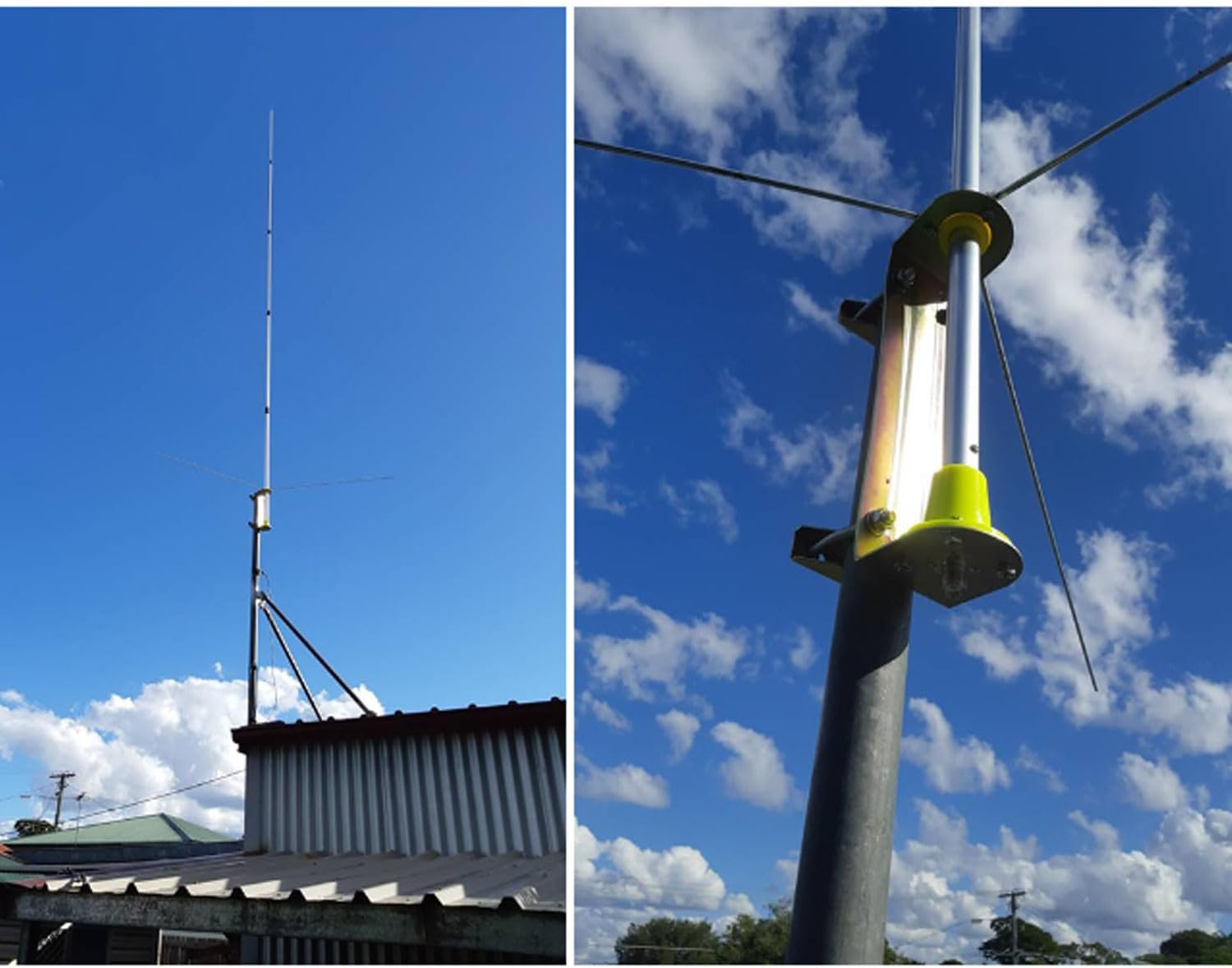

This antenna is best mounted on a length of 40-50mm steel pipe, at least 2 metres above the ground. The entire antenna is 5.9m in length and weighs less than 2Kg.

Note: This antenna is too large to ship by Australia Post.  Shipping will be calculated on an individual basis. We have several couriers capable of delivery. No international shipping is available on this item. Please call for a delivery quotation. We are unable to accept sales from eBay customers for this item. Please order directly from us.
